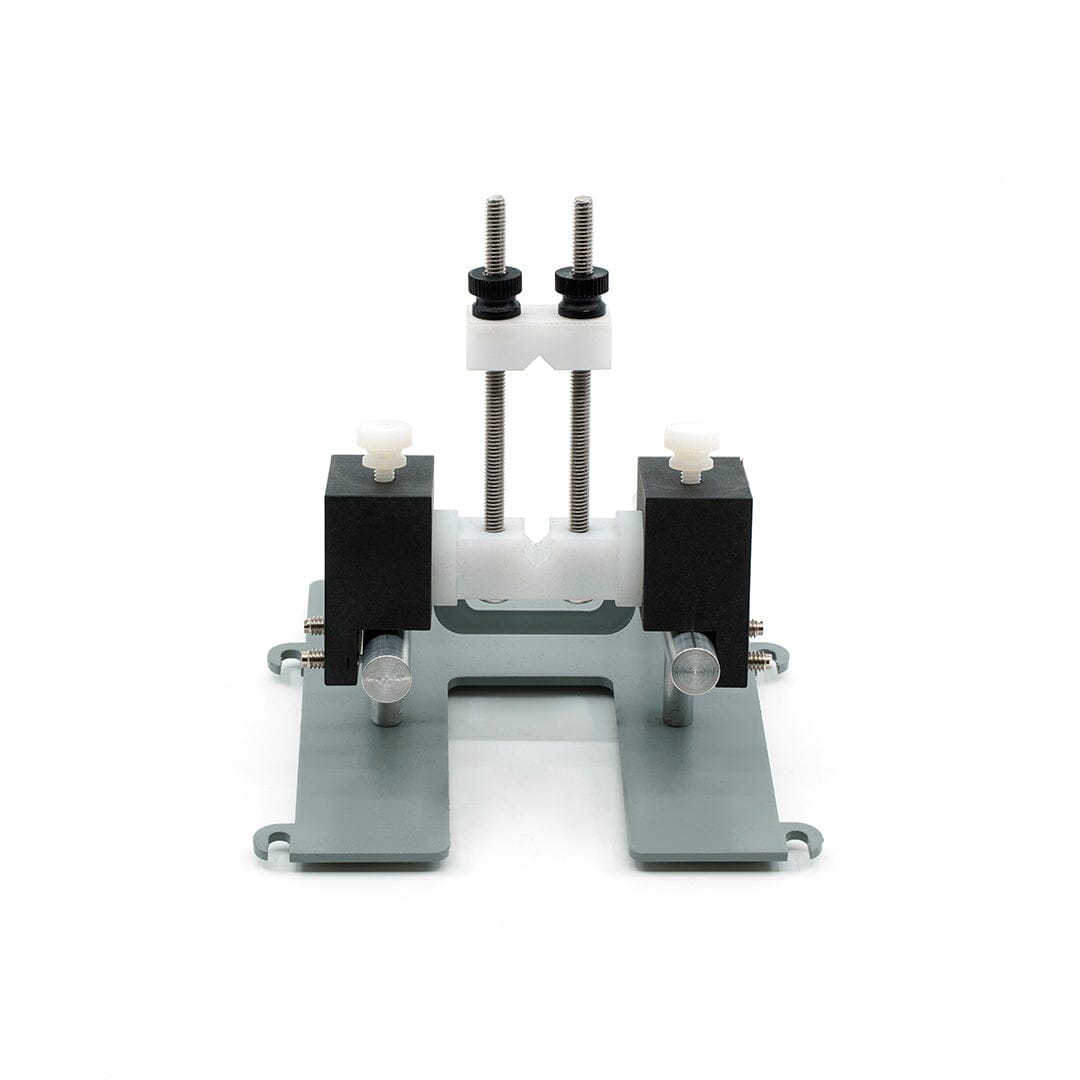

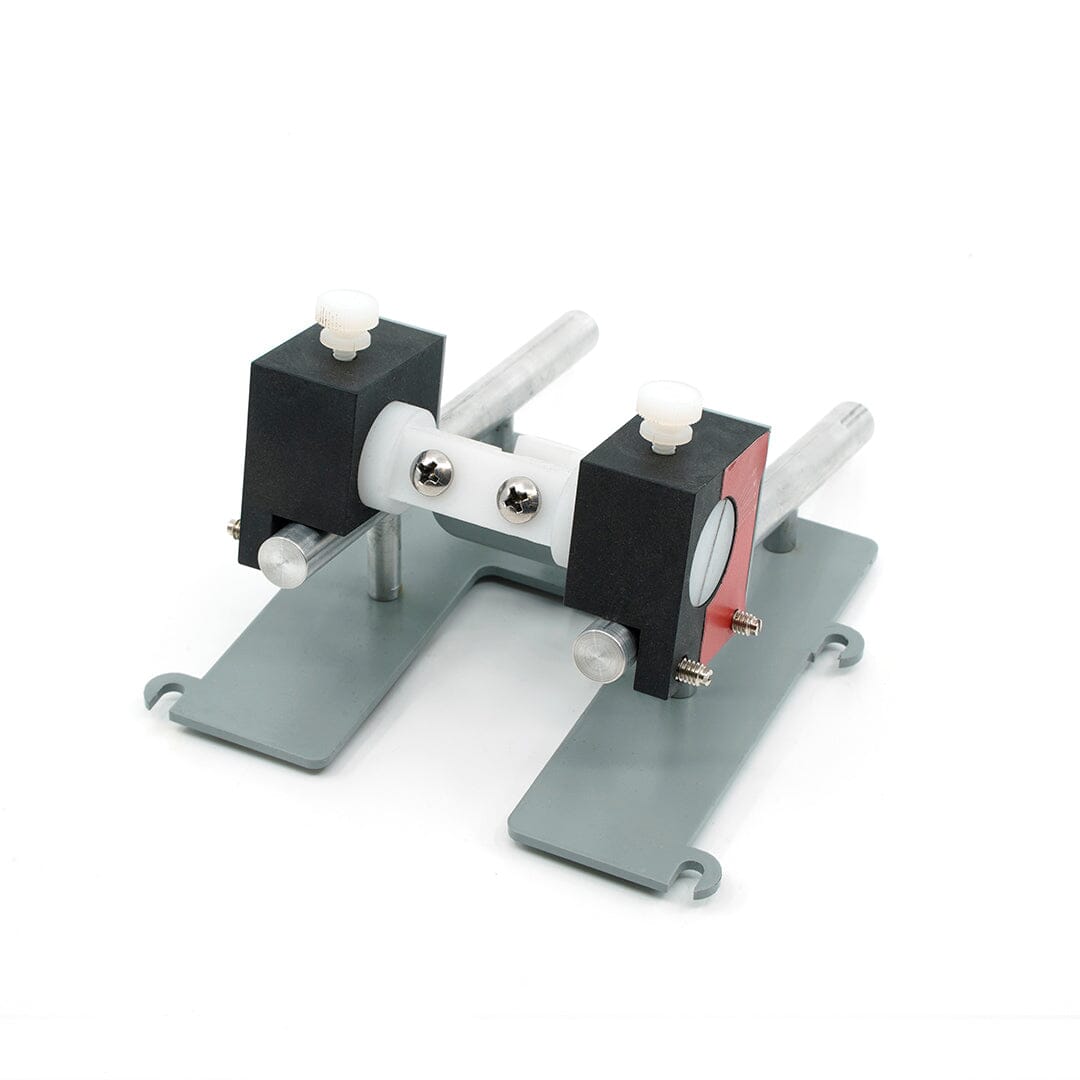

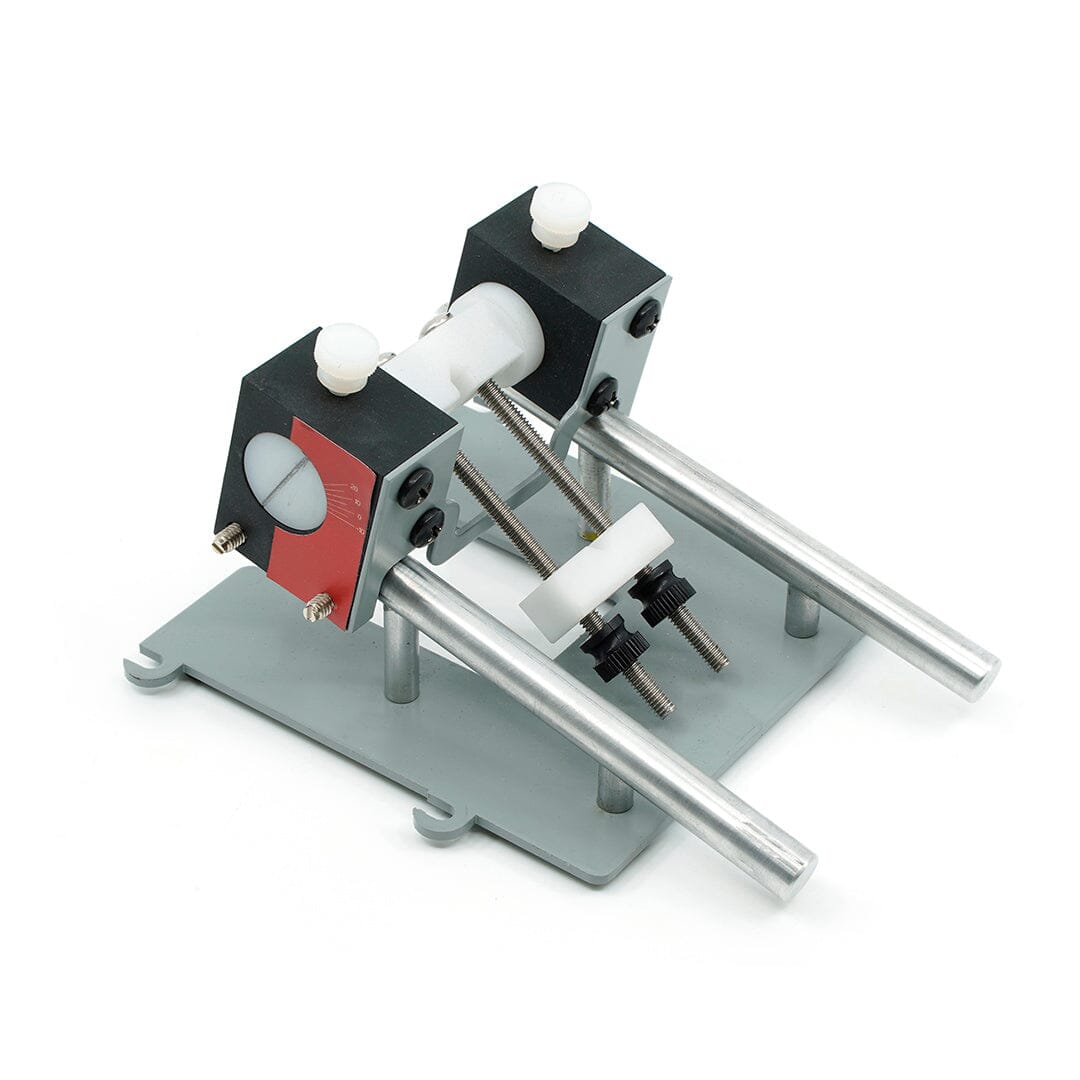

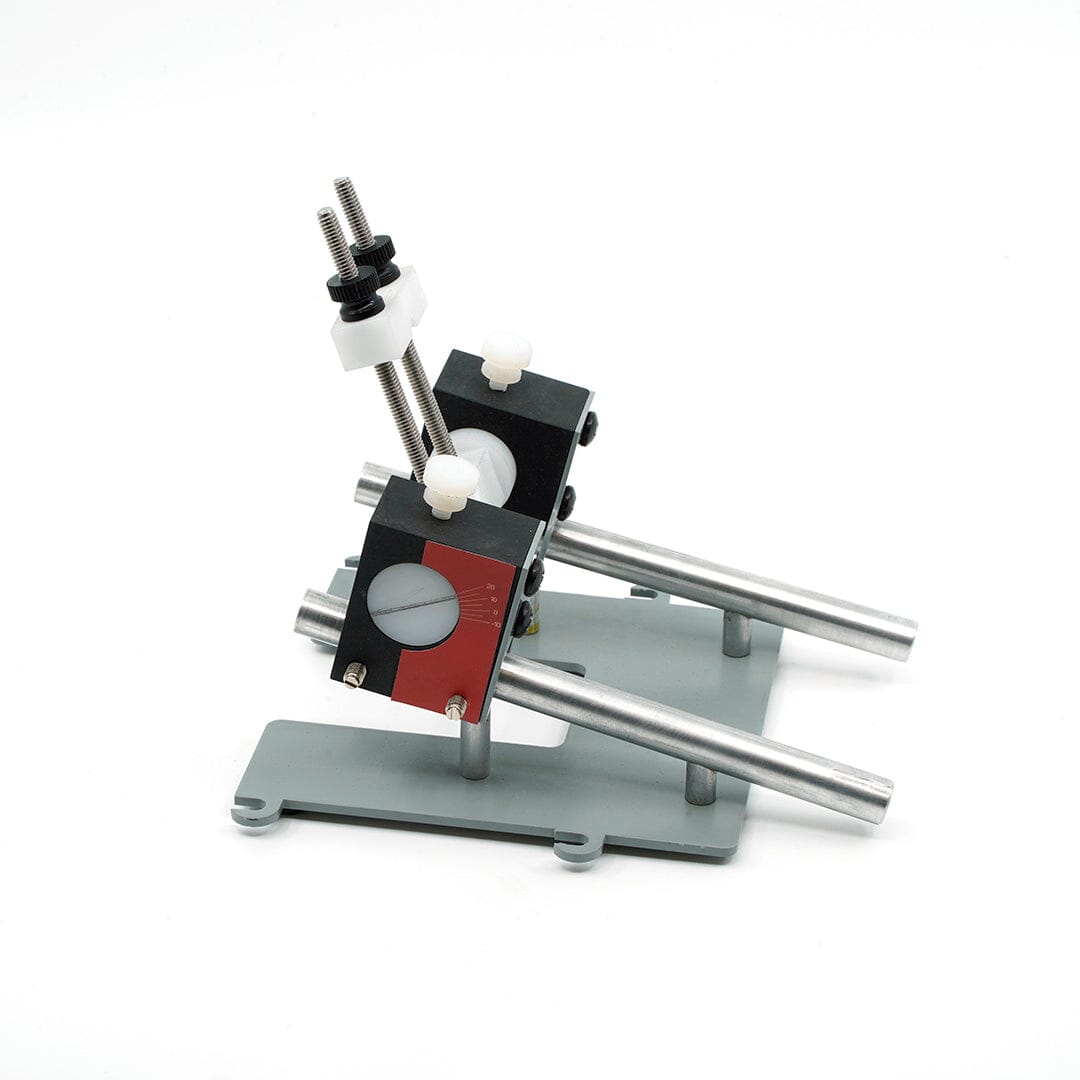

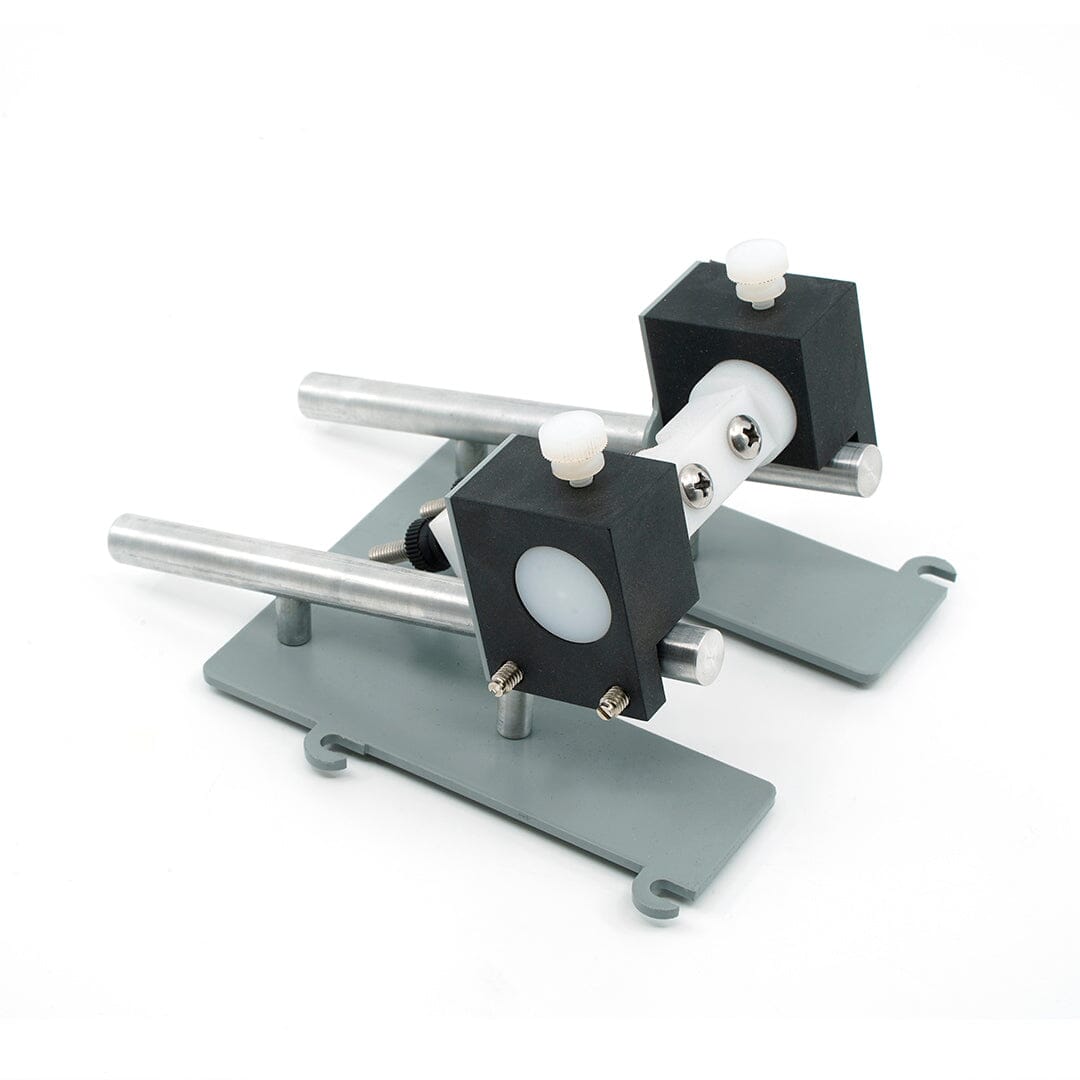

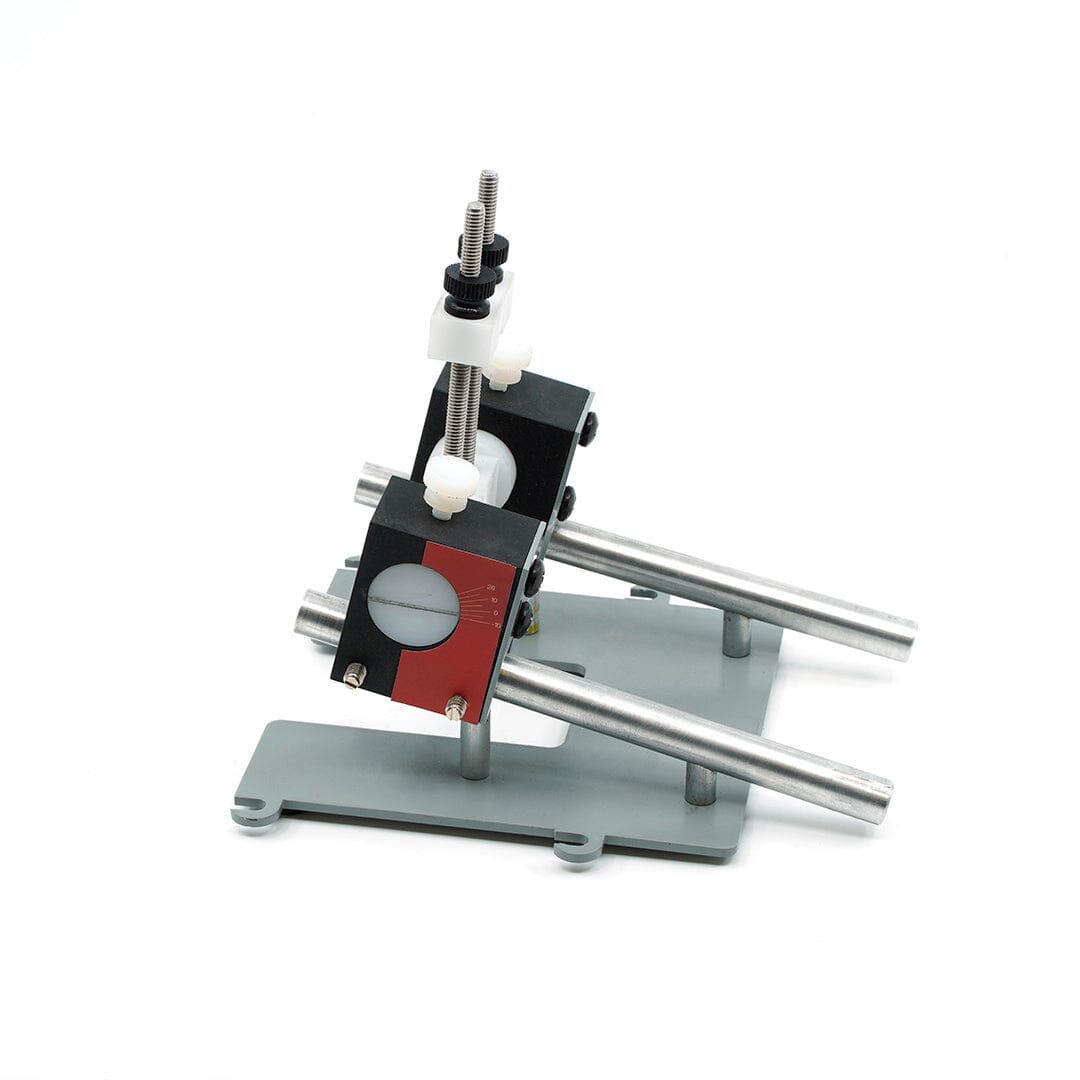

Edge-On-Up CNC10 Slice Glide

The Edge-On-Up CNC10 SLICE GLIDE is the ultimate solution for precision slicing tests.

This manually operated fixture guarantees that each test is performed under the same conditions, ensuring accurate and reliable results every time. The innovative design of the CNC10 ensures a constant 4:1 ratio between the X and Y axis movements of the cutting edge, regardless of the velocity of the slicing movement. This results in consistent and controlled slicing performance.

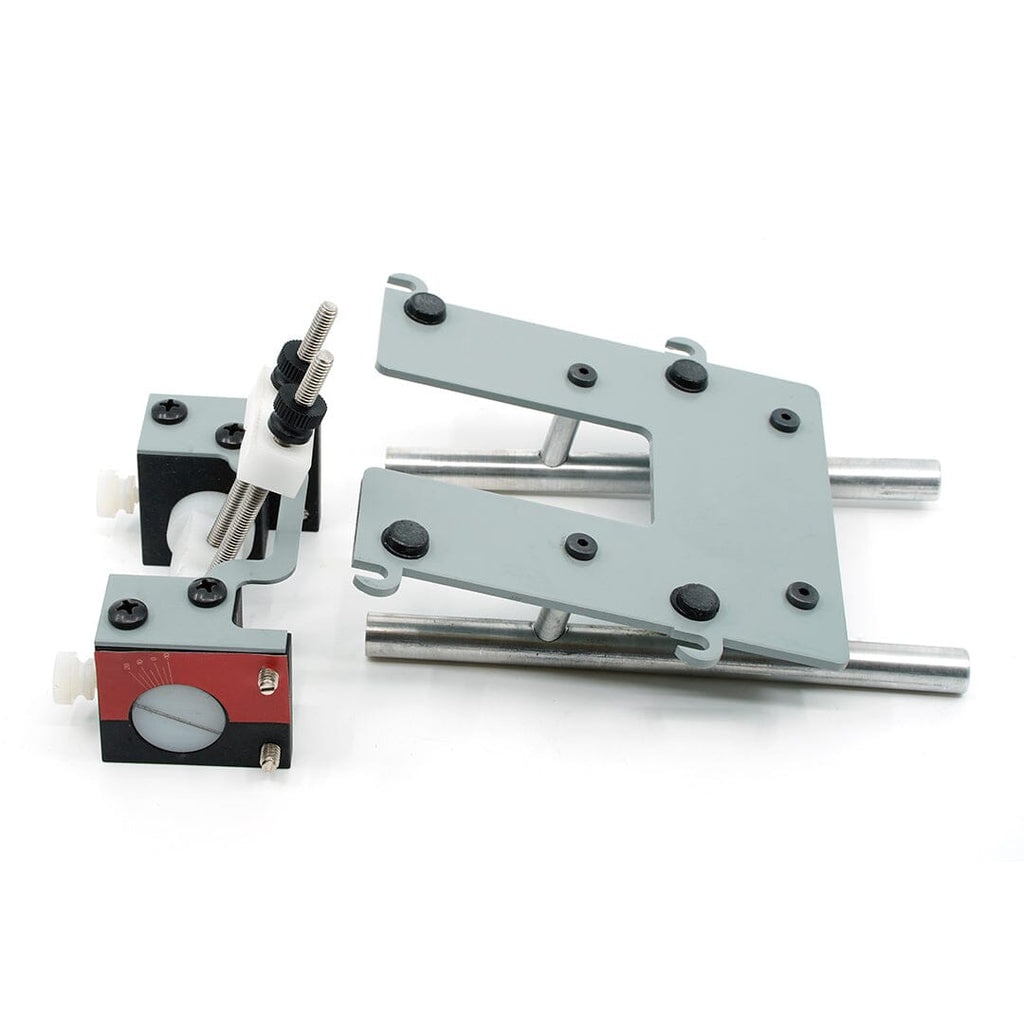

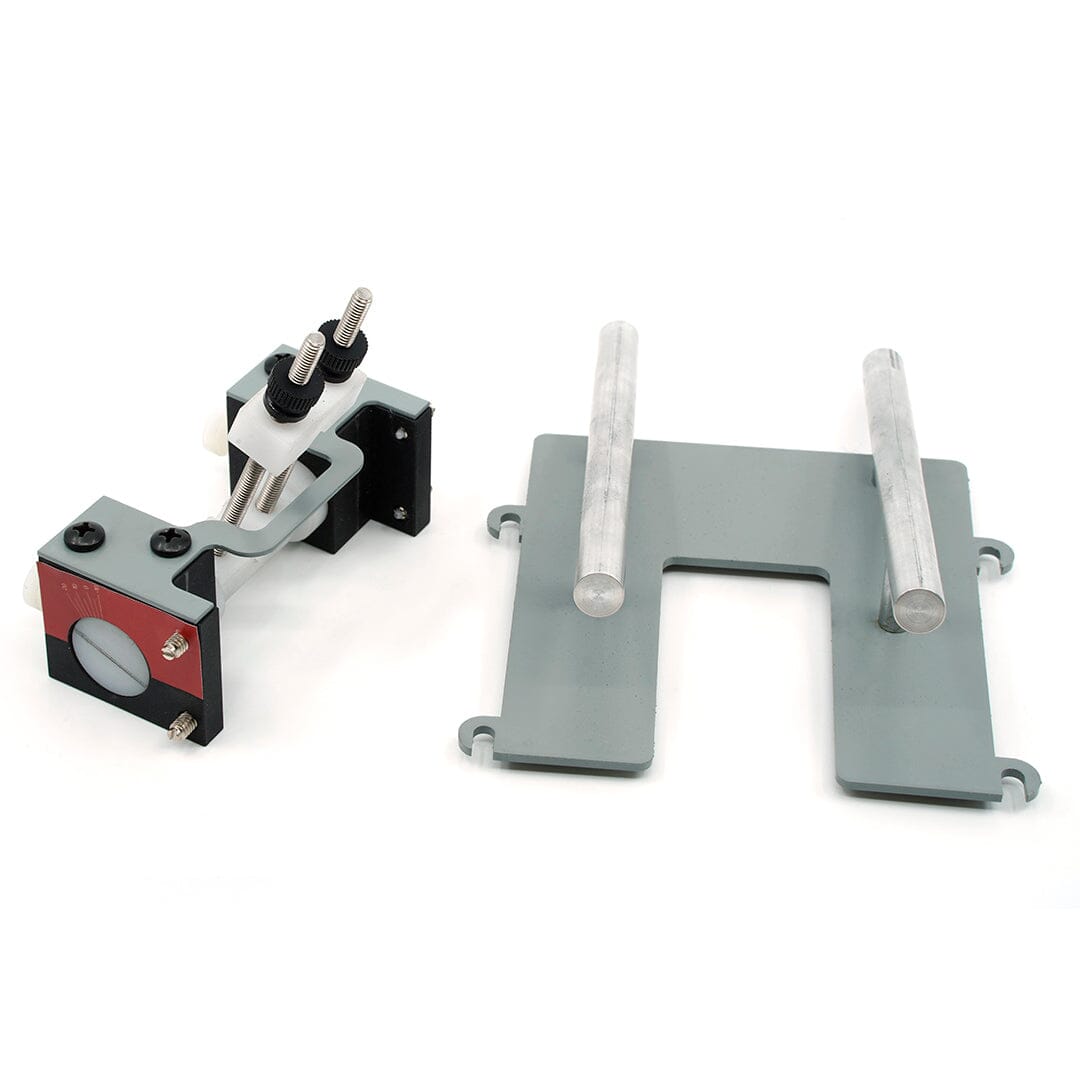

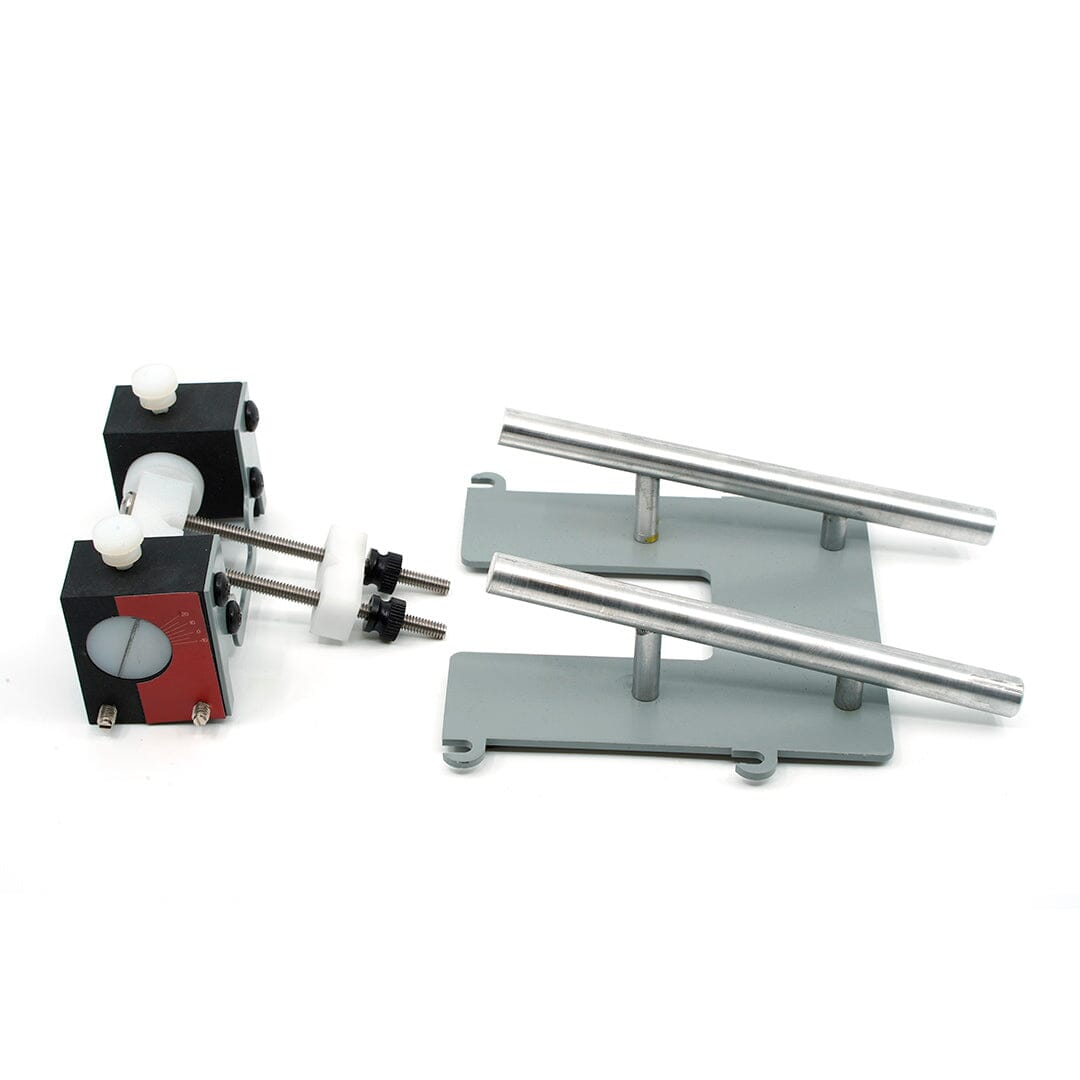

The CNC10 also helps regulate the applied force during each test, giving you the peace of mind that your results are accurate and reliable. The fixture can be adjusted to compensate for curving cutting edges and the slide/knife edge rest assembly can be easily removed and repositioned, making it a versatile tool for all your slicing needs. Whether you need to perform short or long slices (up to 10cm or 4”) or slice depths up to 2.5cm (1.0”), the CNC10 can handle it all.

The Delrin clamping fixture can accommodate cutting edges up to 6.25 mm (.250”) wide and 70mm (2.75”) tall, making it a suitable solution for a wide range of slicing applications. Installing and uninstalling the CNC10 is a breeze thanks to its four thumb screws, so you can get started on your tests right away.

Invest in the CNC10 SLICE GLIDE for consistent and accurate slicing results every time.

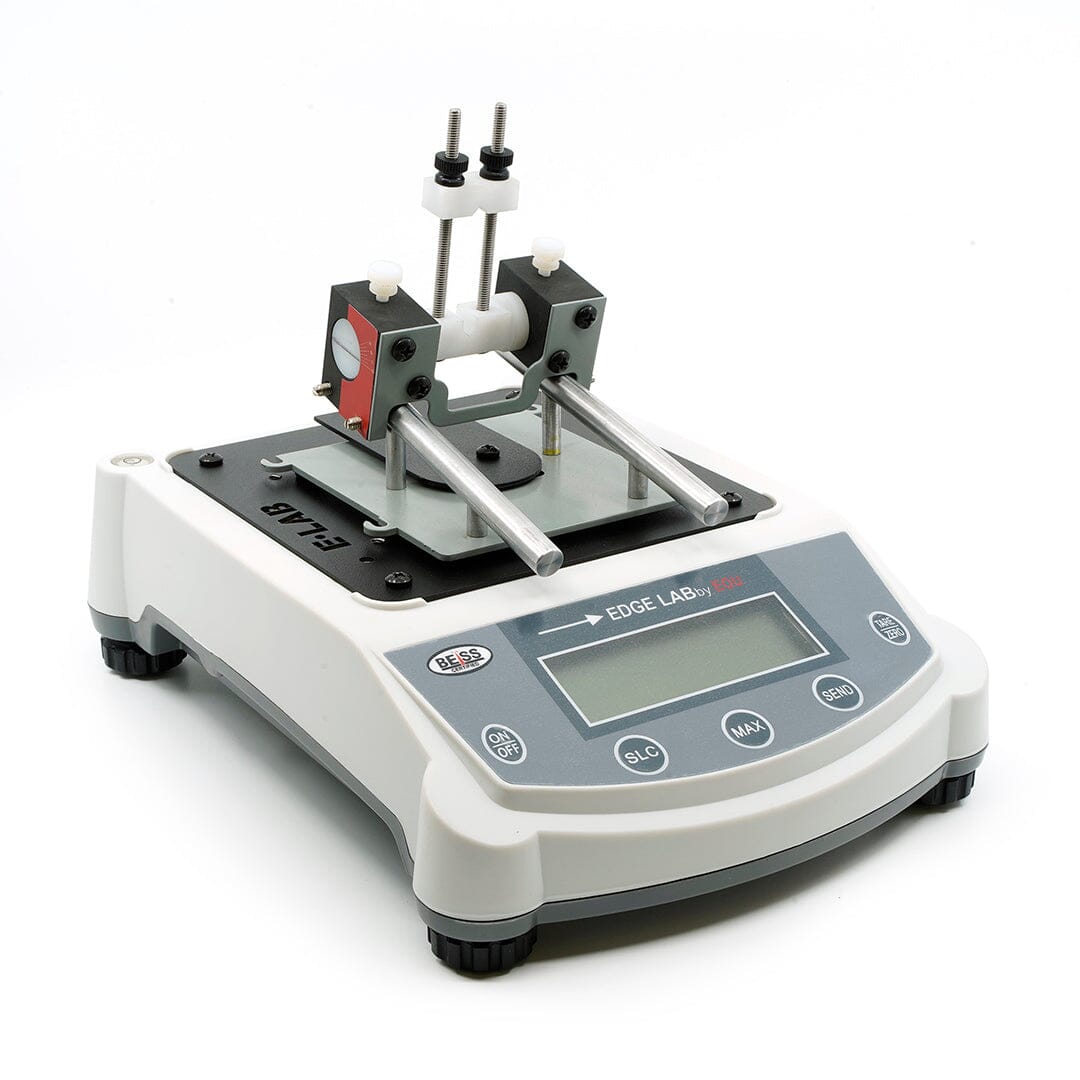

* The CNC10 Slice Glide is only compatible with the EDGE LAB series only
