Edge-On-Up Industrial Edge Tester PT50A

You are $200.00 away from free standard shipping within Australia!

Setting the Benchmark for Sharpness

Determining the sharpness of the blade can be done many ways, here are tests like cutting printer and news paper or shaving arm hair that are often used to demonstrate sharpness, and they are helpful to a certain point, but they lack the precision and consistency required to properly answer the question of sharpness.

How do we prove sharpness other than standard methods? We use a tester like the BESS certified PT50 Series Sharpness Tester from Edge On Up.

What is the BESS Sharpness Standard?

The standard used to determine the sharpness of knives is called the BESS: Brubacher Edge Sharpness Scale. This scale was developed by Mike Brubacher, owner of Edge-On-Up. He has a background in sense and test development in various industries.

In 2012 Mike started developing a standard that could measure the sharpness of knives and needles. The result is the BESS standard that was quickly adopted by professionals and enthusiasts as one of the most user-friendly test methods to determine the sharpness of a blade.

Certified Sharpening Tester for best knife sharpener

Measuring and Testing Sharpness

The PT50 Series of Edge On Up Sharpness Testers give the user the ability to measure and quantify the level of sharpness of any tested edge. The systems work by measuring the force in grams required to cut through a standardized and calibrated test medium. The result is a number output on the display that can be used to compare the relative sharpness of edges.

Because a number doesn't say a lot without surrounding context a table was set created to make sure you can see how the score relates to the total scale. From 2000 BESS of an unsharpened knife to 0 BESS: Highest sharpness. There will be few knives that will come close to the 0 BESS. A double-sided sharpened razor is one.

Any knife that us sub 50 BESS is deemed razor sharp.

The sharper the knife, the less weight you need, the lower the BESS value. A lower score is therefore sharper than a higher score.

BESS Sharpness scale graph for blades edges

The Range

Compared to other sharpness testers this Edge On Up PT50A has a better responding sensor and a faster computer processor to measure the sharpness of your knives even more accurately!

The Edge-On-Up PT50C measures in steps of 25 grams and the Edge-On-Up PT50B measures per 5 grams.

The Edge-On-Up Industrial Edge Tester PT50A Features:

  • 25 measurements-per-second processor
  • Very Fine 1 Gram Resolution
  • Maximum Load Rating of 3000 Grams
  • Heavy Steel Measurement Platform
  • Industrial Strain Sensor
  • Portable Lightweight Design
  • 3 Button Operation
  • 2 AAA Batteries Included



The Edge-On-Up PT50A Sharpness Tester Contents

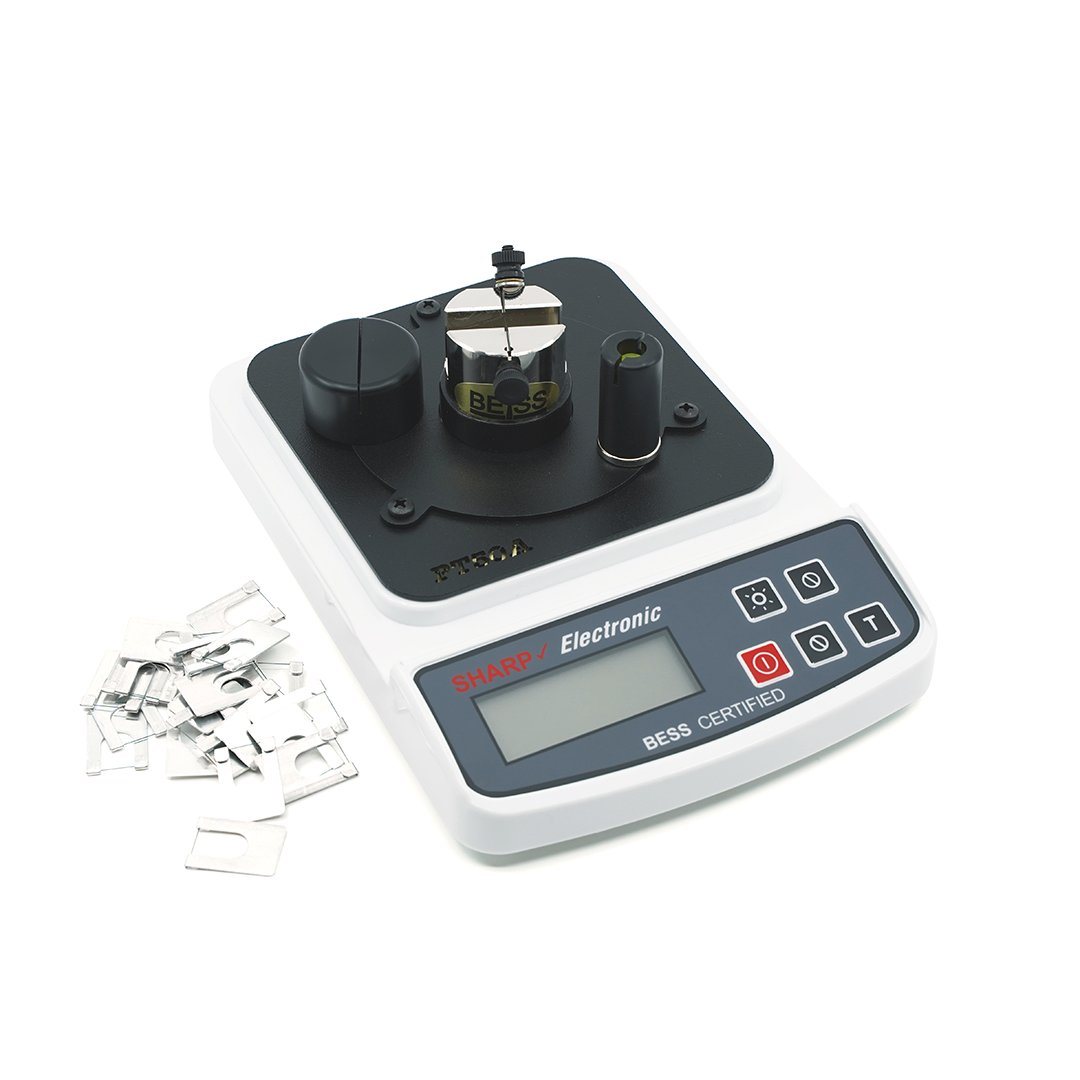

  • The Edge-On-Up PT50A

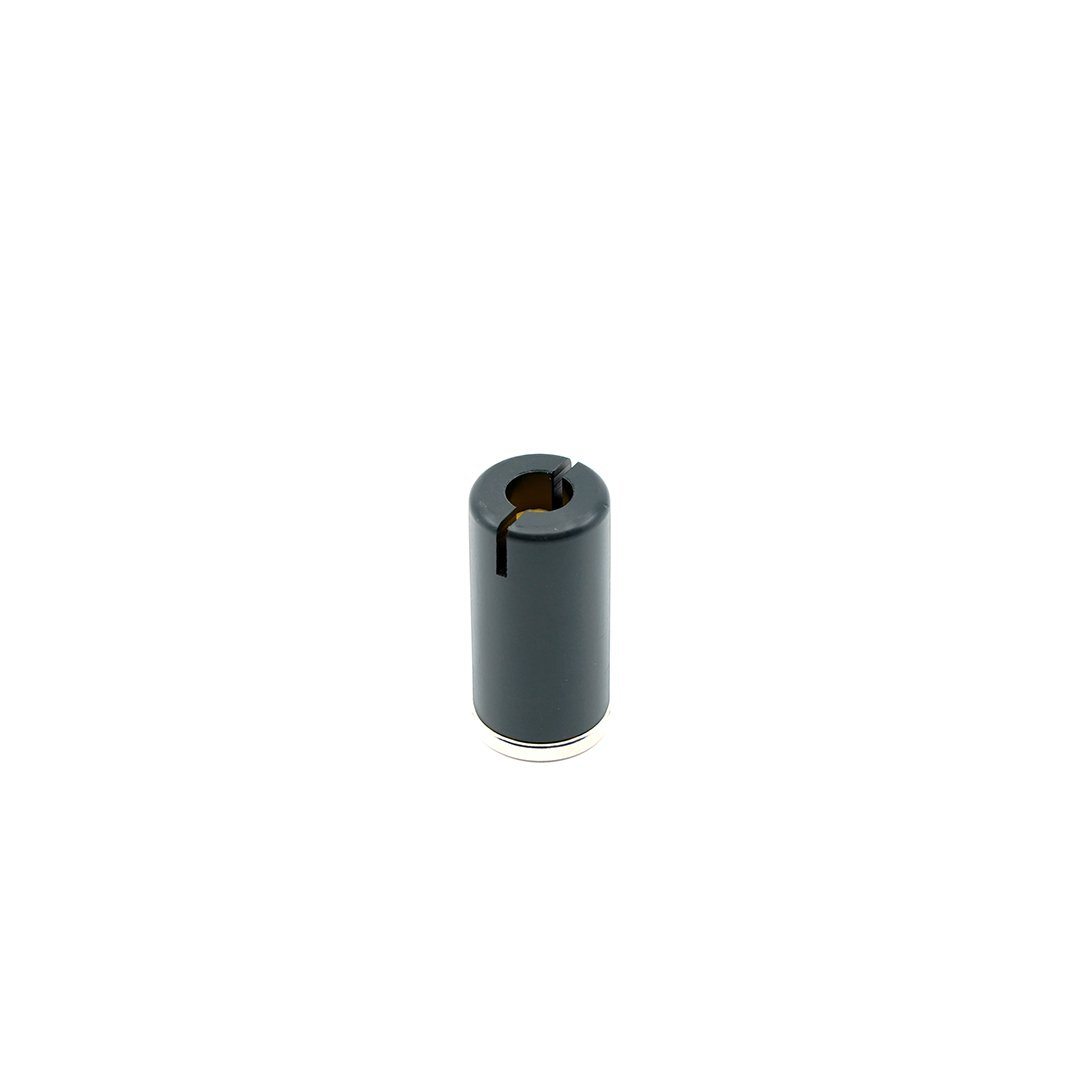

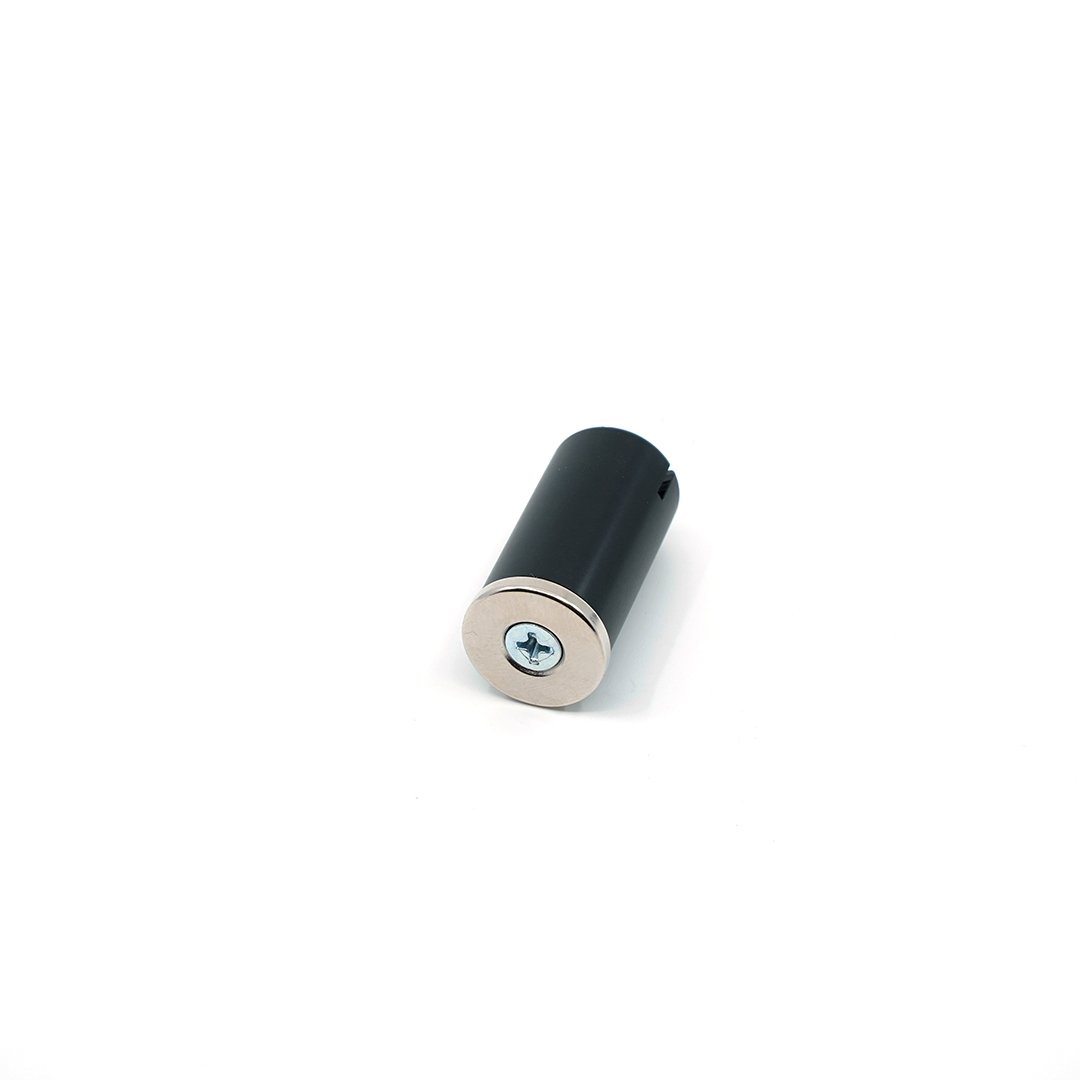

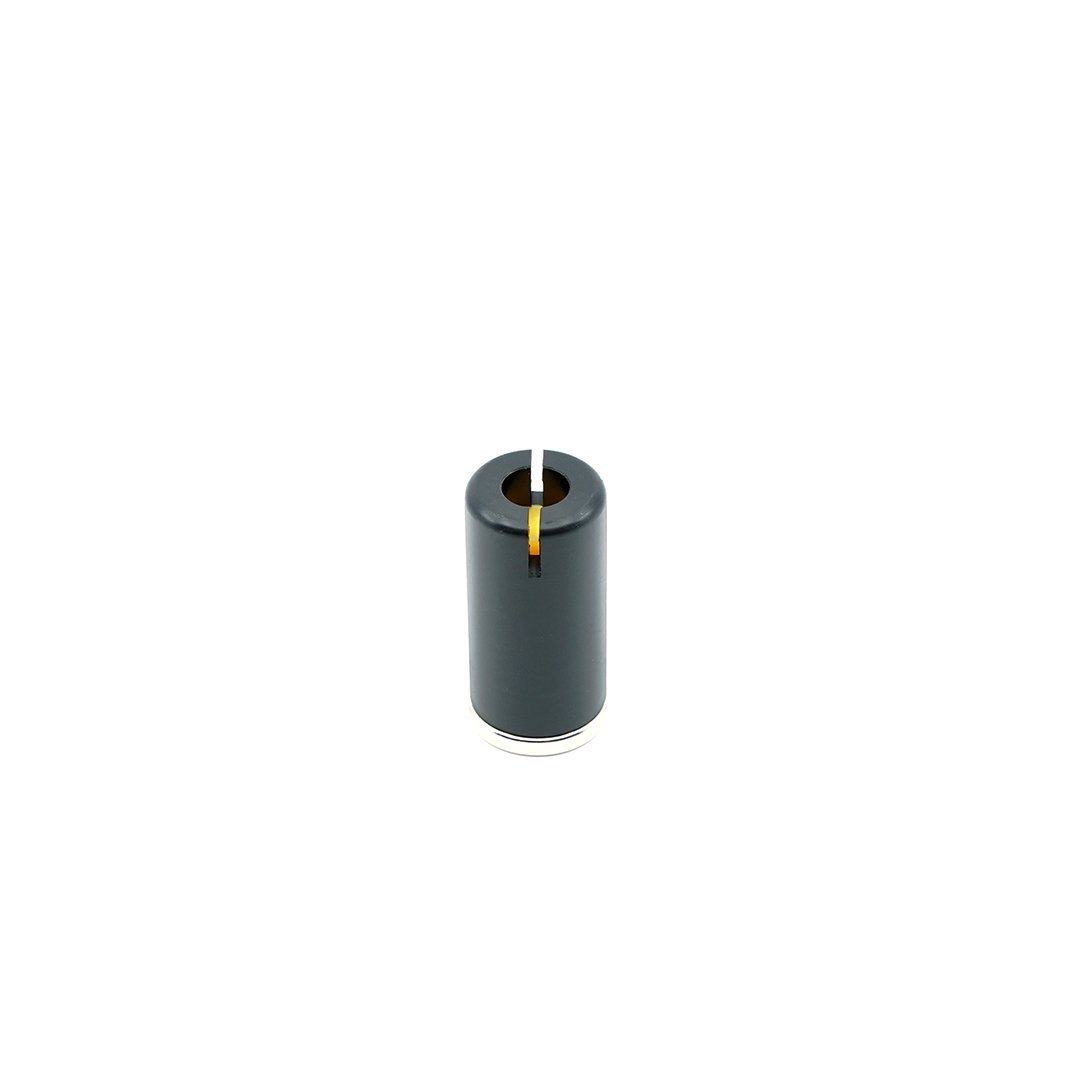

  • Edge-On-Up Fulcrum support
  • Aluminium base and DoubleX test medium, Replacement media available HERE

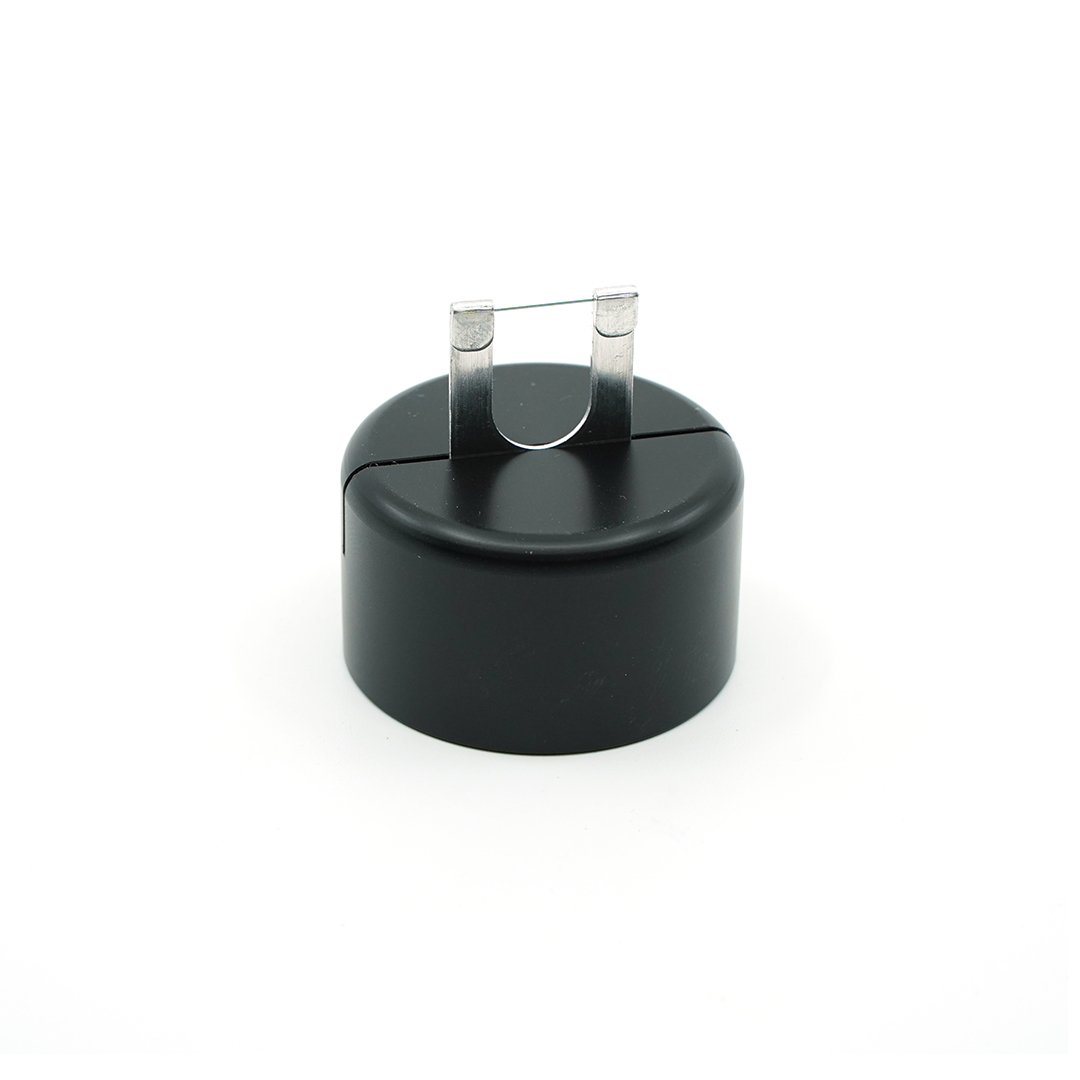

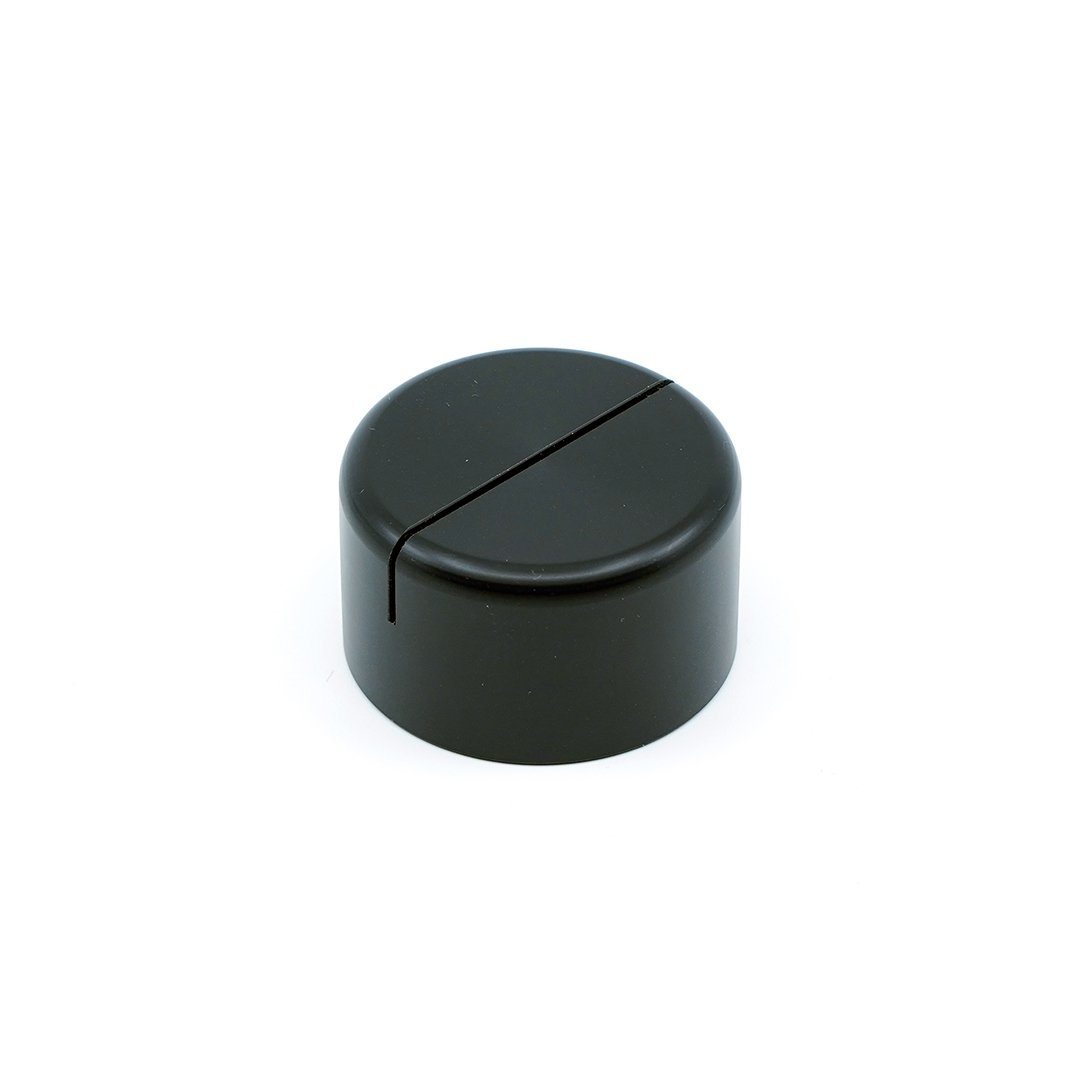

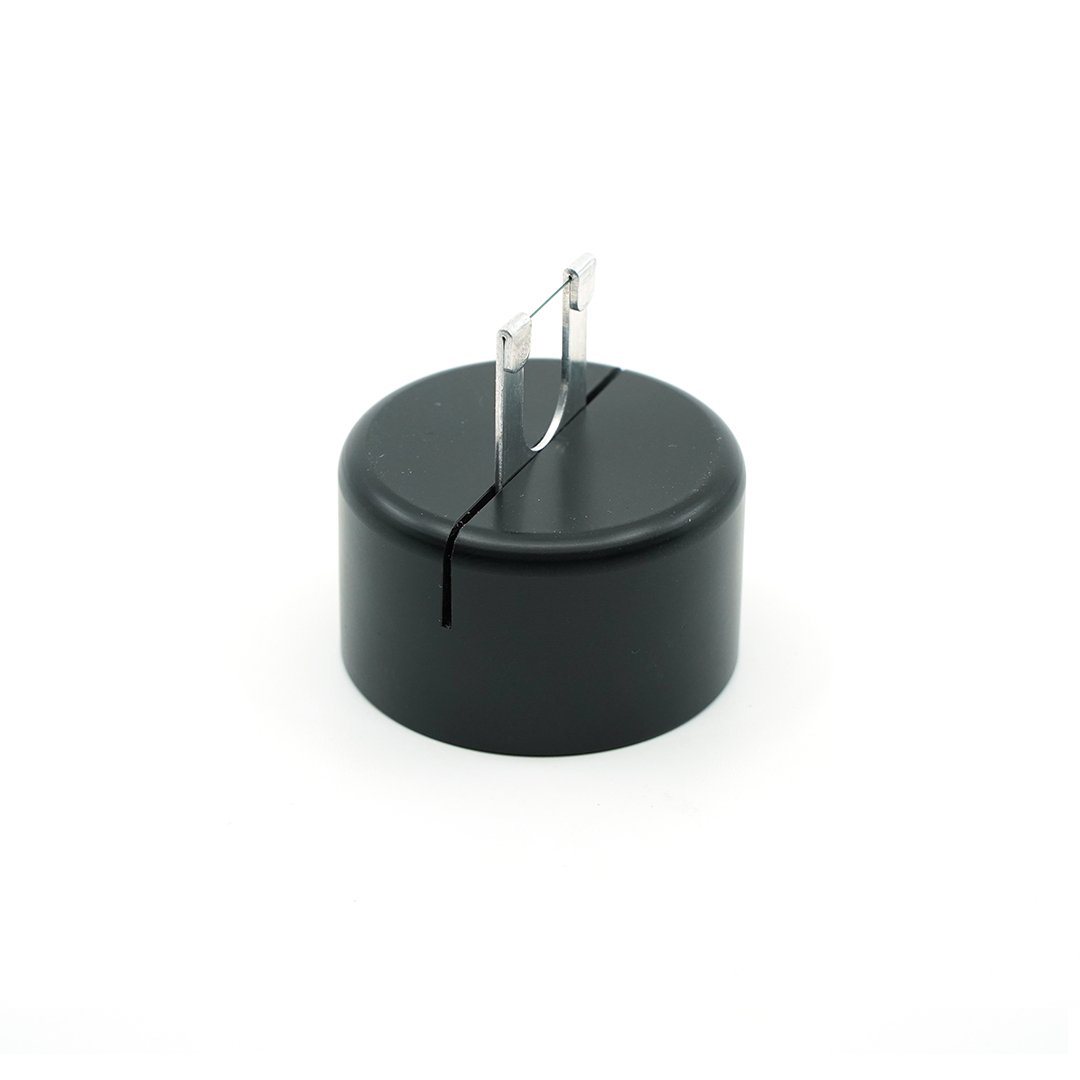

  • Base for test clips

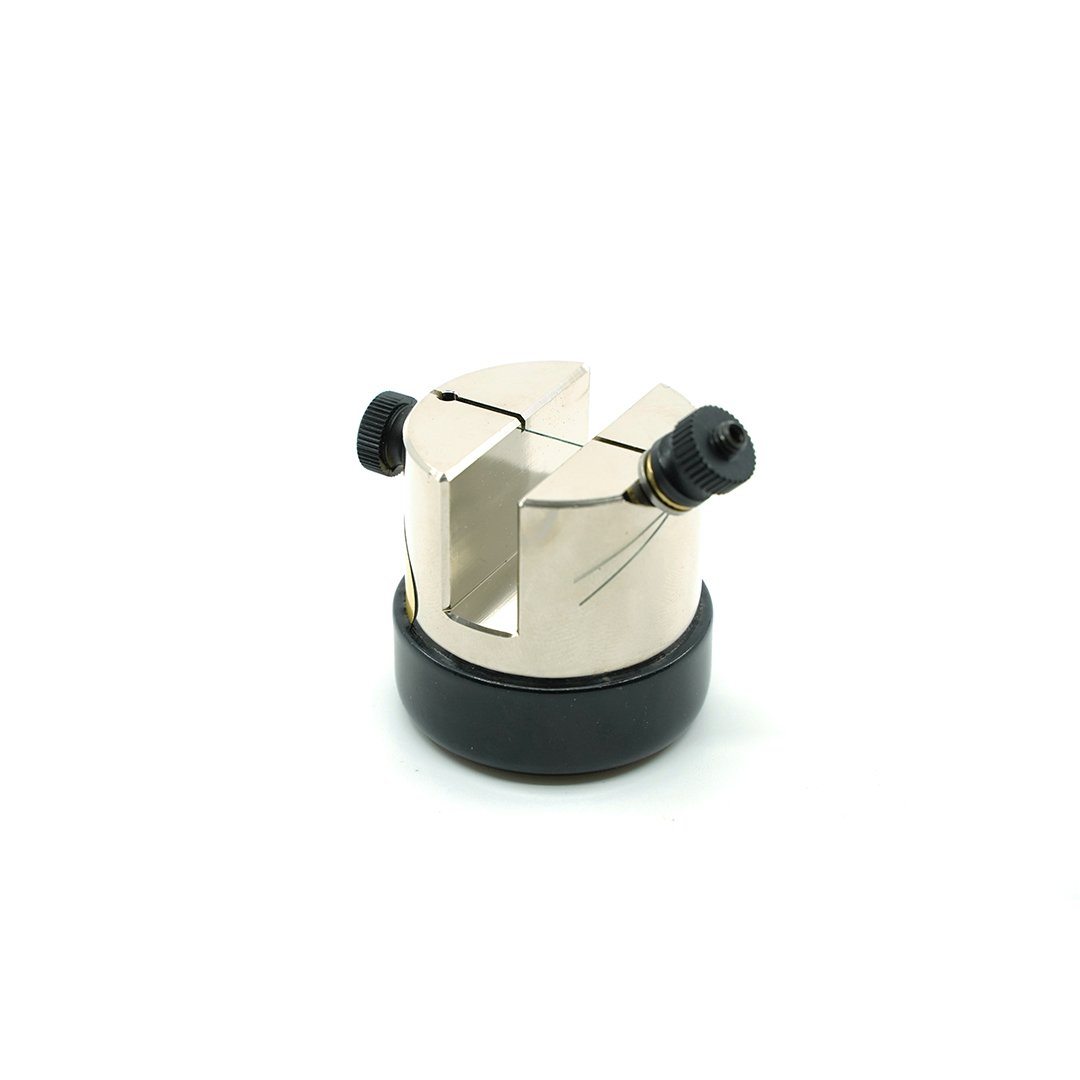

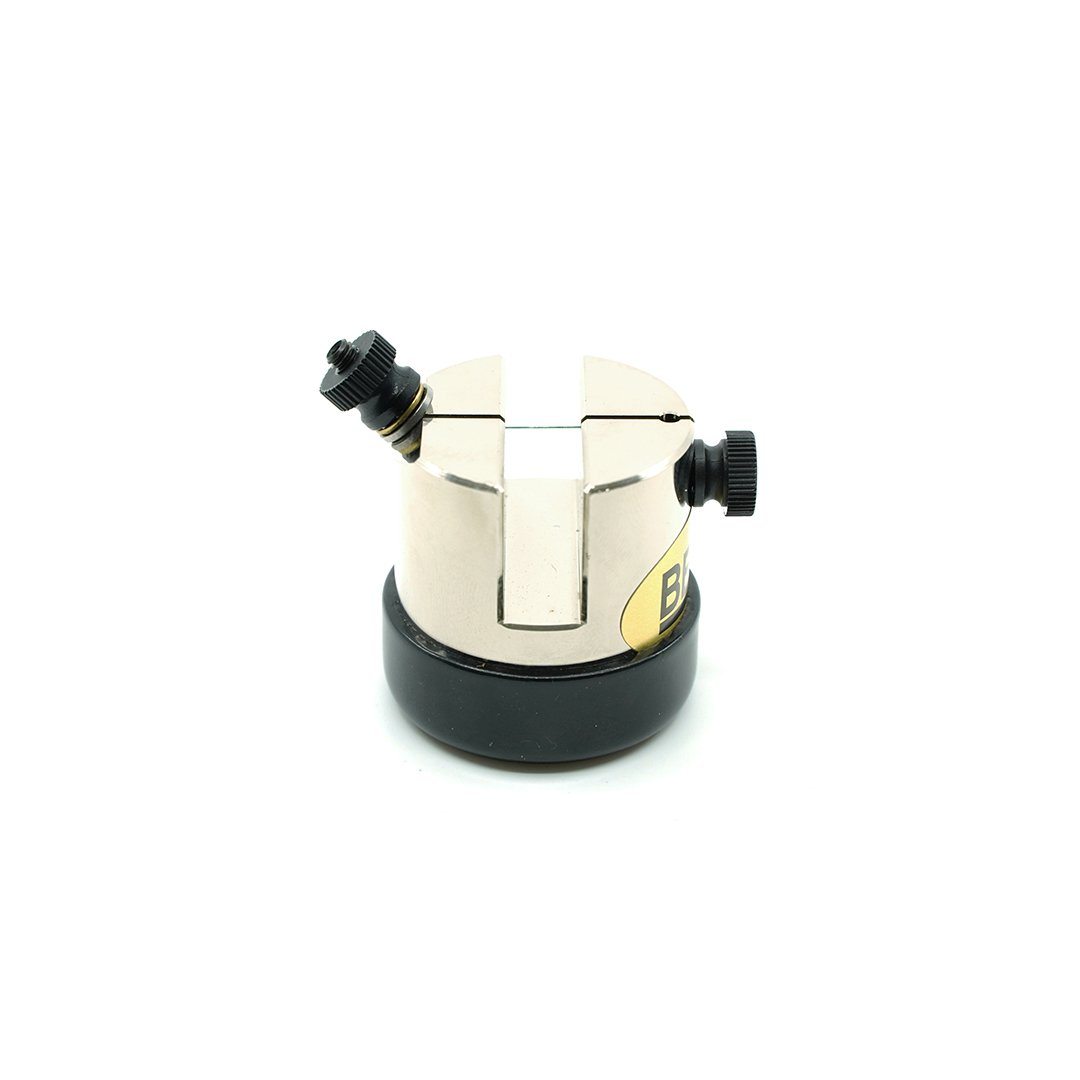

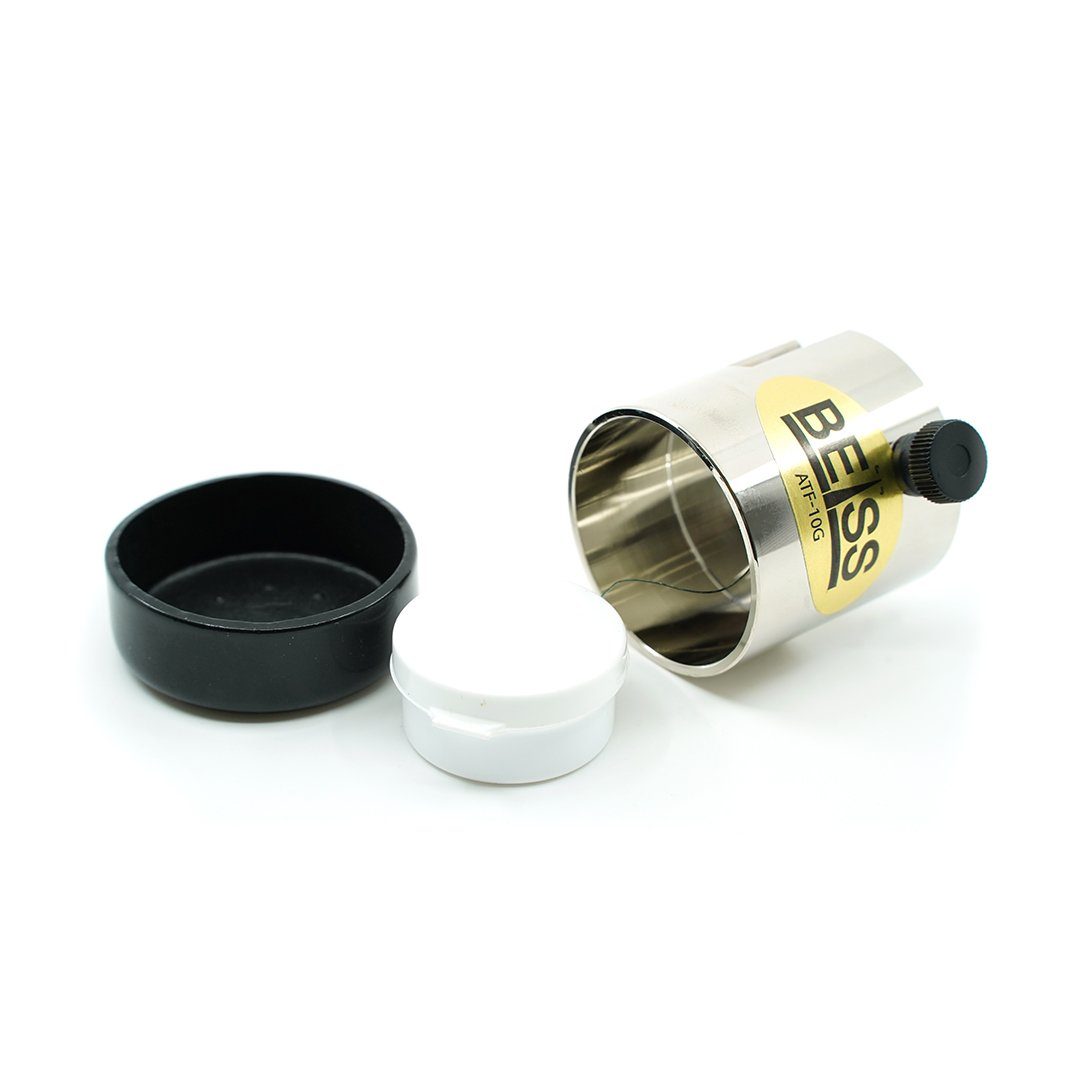

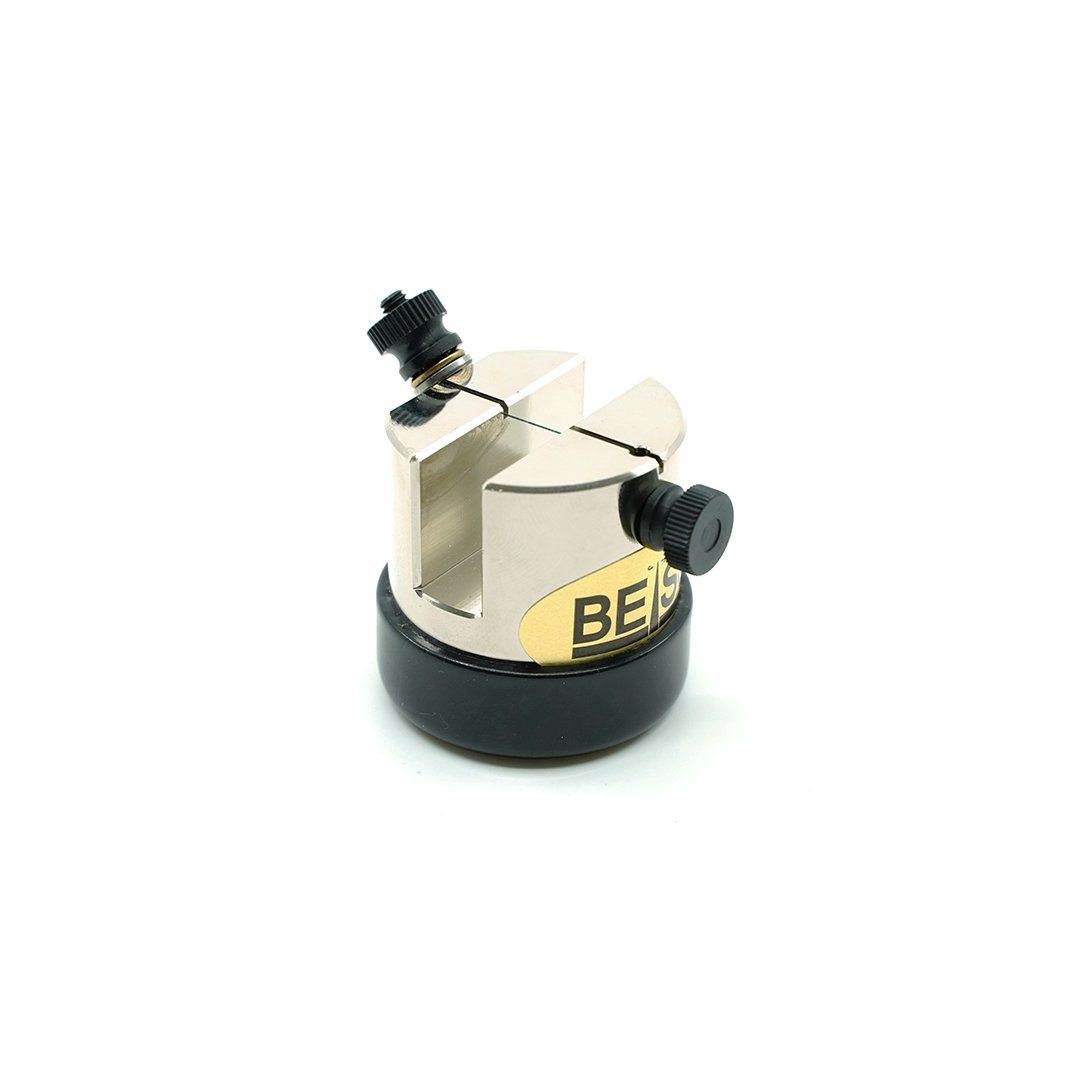

  • New Test Fixture

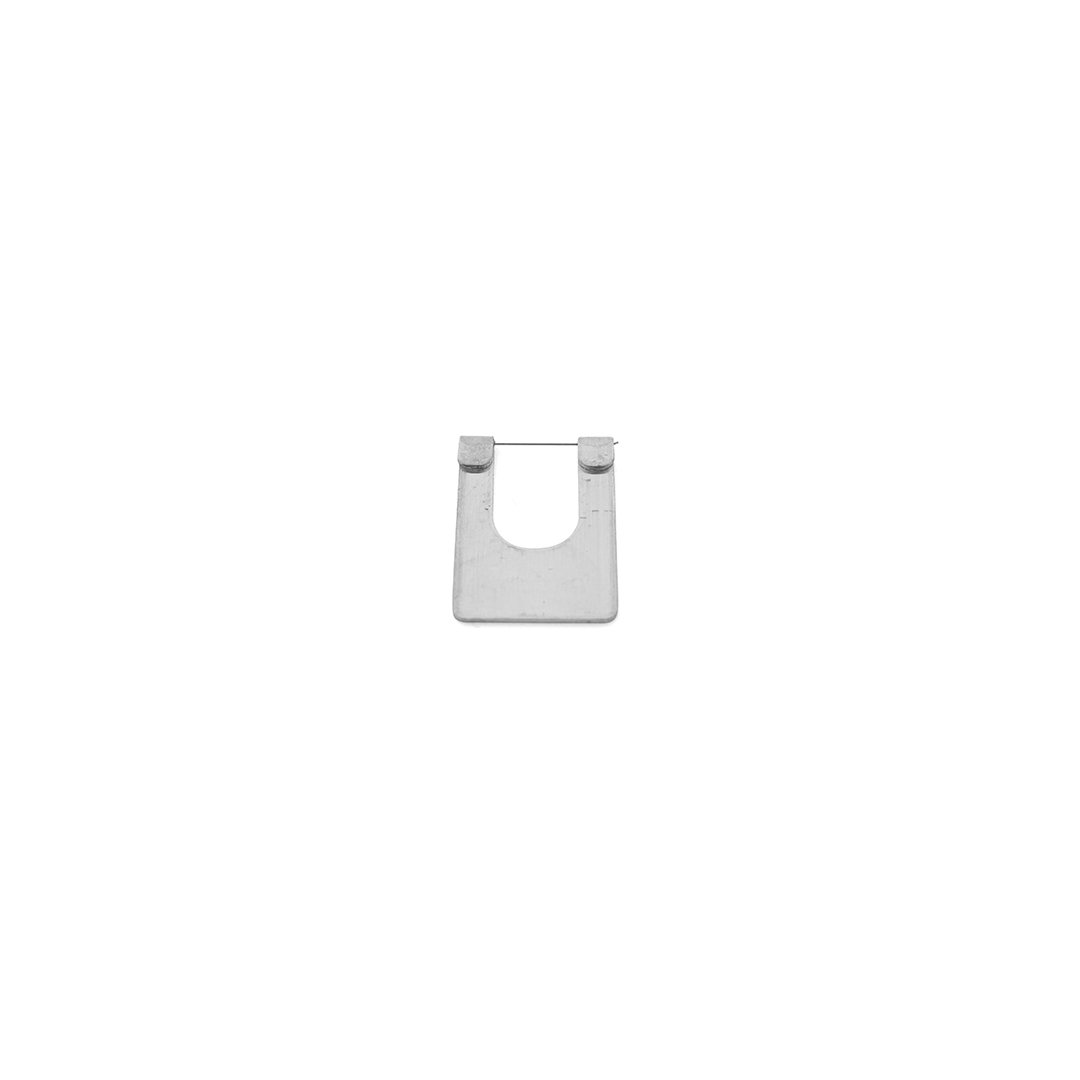

  • 25 Test Clips, Replacement media available HERE
