Hapstone Pro Knife Sharpener R2 Unboxing and Overview

August 19, 2021

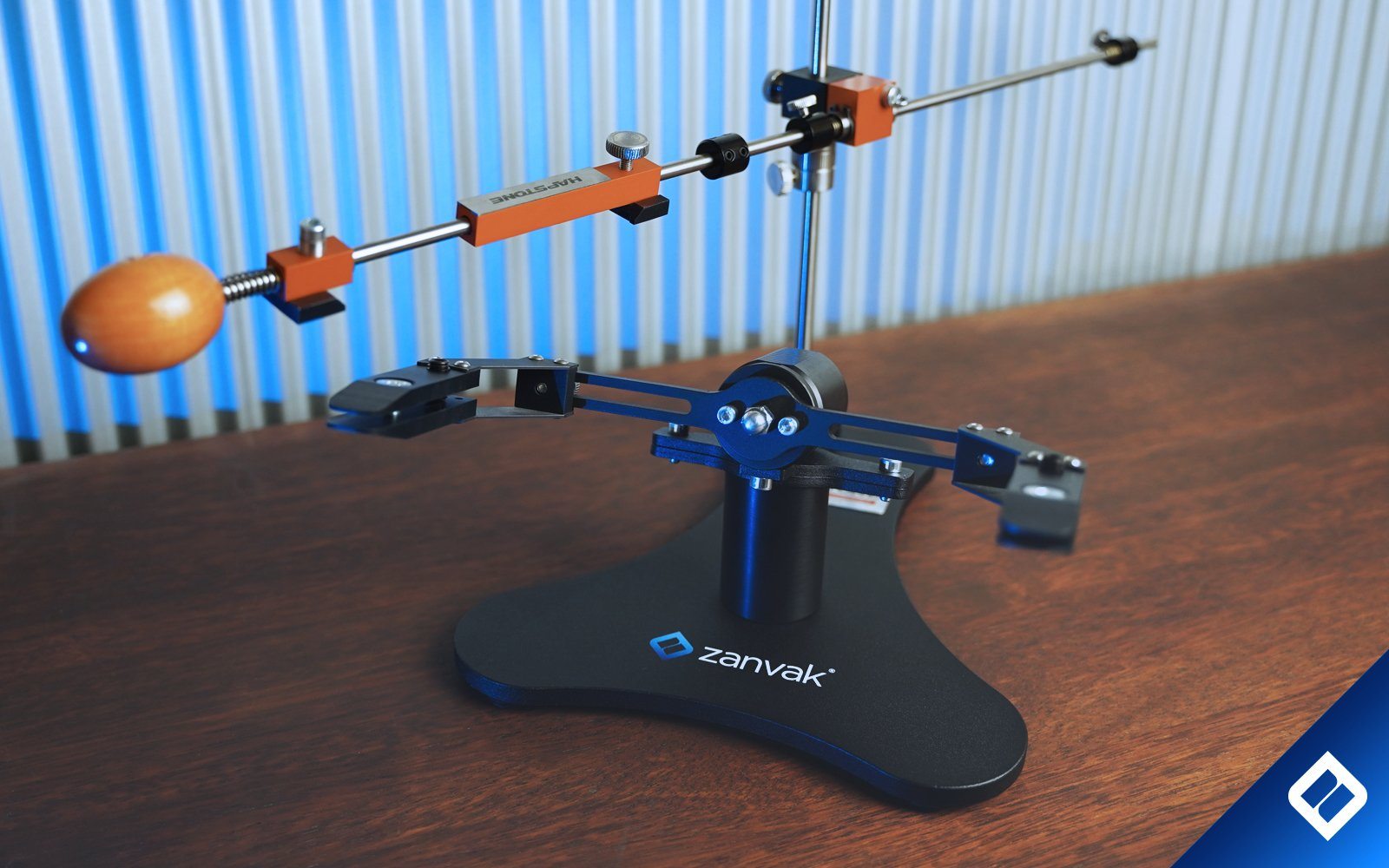

Hapstone Pro Knife Sharpener R2 Standard

Unboxing our Hapstone Pro R2 Standard Knife Sharpener



We received our Hapstone Pro Knife Sharpener and thought it would be great to show you how the R2 system comes packaged and the key components of the system.

Hapstone Pro Knife Sharpener R2 Standard

We are presented with a rigid brown shipping box with Hapstone branded packing tape.

Shipping box:

Hapstone Sharpening System Shipping box

Once the shipping box is opened up we are presented with a lifestyle image of the system printed onto the sleeve that covers the internal box.

Hapstone Pro Sharpening system shipping box and sleeve

Its easy to slide the internal box out of the sleeve and then we are greeted with a Hapstone Pro branded white box with Hapstone logos on the outside.

Hapstone Pro Knife Sharpener, Best knife sharpener from Hapstone

Once we cut open the box we are presented with smaller boxes with number on them numbered 1-4.

Hapstone Pro Knife Sharpener R2 Hapstone Pro Knife Sharpener Hapstone Pro Knife Sharpener Hapstone Pro Knife Sharpener unboxing



After removing the numbered boxes we start with box #1

Hapstone Pro Knife Sharpener Unboxing Hapstone Pro Knife Sharpener Unboxing



Inside box #1 we find the steel base wrapped in Hapstone branded wrapping paper and also a smaller box containing the riser that supports the modular systems, finally there is an Allen key for mounting the riser to the base.


Hapstone Pro Knife Sharpener Unboxing Hapstone Pro Knife Sharpener Unboxing

Box #2 contains the guide rod, Stone holder, Pivot bearing unit and the vertical rod for the base.

Hapstone Pro Knife Sharpener Unboxing Box 2 Hapstone Pro Knife Sharpener Unboxing

The stone holder is made of what appears to be a steel rod and anodized aluminium with a wooden handle for holding on to.

Hapstone Pro Knife Sharpener Unboxing Hapstone Pro Knife Sharpener Unboxing

The pivot has two sections, Black section mounts to the vertical rod with a thumb screw and the Orange section contains the bearing for smooth guide rod operation.

Hapstone Pro Knife Sharpener Unboxing Pivot

On the back for the pivot is a hook for parking the guide rod when not in use, this is a simple part of the system but it makes the sharpening process more enjoyable.

Hapstone Pro Knife Sharpener Unboxing Pivot Hapstone Pro Knife Sharpener Unboxing Pivot R2

Box #3 presents us with the 360 degree rotating module, this is the core part of the R2 Hapstone Pro Knife Sharpener system.

Hapstone Pro Knife Sharpener Unboxing 360 Module Hapstone Pro Knife Sharpener Unboxing 360 degree R2 module

The accessory clamps mount to the front of the module and allow you to clamp various blades.

Hapstone Pro Knife Sharpener Unboxing R2 Module 360 degree

The 360 degree rotating module uses a detent with a roller bearing to turn smoothly, the detent tension can be adjusted to a desired rate using the turn knob on the back of the module, this applies extra pressure on the bearing to hold it in place, this then requires more force to rotate the blade.

Hapstone Pro Knife Sharpener Unboxing R2 360 degree module Hapstone Pro Knife Sharpener Unboxing R2 360 degree module

Box #4 contains our knife clamps, these are made from spring steel and machined to shape.

Hapstone Pro Knife Sharpener Unboxing R2 Clamps Hapstone Pro Knife Sharpener Unboxing R2 Clamps Hapstone Pro Knife Sharpener Unboxing R2 Clamps

These clamps can be mounted inwards or outwards depending on the blade that you wish to clamp, the benefit of this clamp type is that it allows for better clamping of full flat ground blades as the jaws actually pivot to clamp the blade.

Hapstone Pro Knife Sharpener Unboxing R2 Clamps

To clamp a blade just open the jaws so the spine slides in then use the rear adjusting grub screw to apply leverage against the blade, this creates a secure grip on the spine, with no risk of the knife coming loose.

There are two boxes with no numbers on them, these contain the Micro tuning adjuster which comes standard with the R2 Classic models and is an optional upgrade on all other models, and finally the two spring stoppers for the guide rod.

Hapstone Pro Knife Sharpener Unboxing R2 Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2 Fine tuning adaptor

Hapstone Pro Knife Sharpener Unboxing R2 Fine tuning adaptor

The spring assisted stoppers prevent the guide rod from smashing into the bearing housing

Hapstone Pro Knife Sharpener Unboxing R2 Fine Spring assisted stoppers Hapstone Pro Knife Sharpener Unboxing R2 Fine Spring assisted stoppers

Hapstone Pro Knife Sharpener Unboxing R2 Fine Spring assisted stoppers

ASSEMBLY

To begin assembling we start with the steel Hapstone base and vertical riser, remove the screws from the base of the riser and then feed them from underneath the base, face the riser so it leans back towards the back of the system.

 Hapstone Pro Knife Sharpener Unboxing R2 Vertical riser

Hapstone Pro Knife Sharpener Unboxing R2 Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

Feed the vertical rod up through the rear hole and secure in place with the stopper.

Hapstone Pro Knife Sharpener Unboxing R2 Hapstone Pro Knife Sharpener Unboxing R2



Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

Slide the micro tuning adaptor down the rod and lock in place, then slide the pivot unit onto the vertical rod with the guide rod paring tool facing downwards as this can be accidently installed upside down.

Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

To install the 360 degree Hapstone Pro module loosen the two Allen key bolts on the top side of the vertical riser.

Hapstone Pro Knife Sharpener Unboxing R2 Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

Slide in the module to the matching slots and retighten the Allen key bolts to secure.

Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2

Connect the two parts of the guide rod with the supplied small Allen key to form the complete guide rod and stone carrier

Hapstone Pro Knife Sharpener Unboxing R2 Guider rod assembly

Hapstone Pro Knife Sharpener Unboxing R2 Hapstone Pro Knife Sharpener Unboxing R2

Insert the guide rod into the pivot bearing and park it using the parking tool.

Hapstone Pro Knife Sharpener Unboxing R2 Pivot

Fitting the supplied Hapstone Pro clamps are easy to attach to the 360 cross bar, simply loosen and remove the screw and washer from the rear of the clamp then sandwich the clamp and screw between the cross bar and tighten them back together.

Hapstone Pro Knife Sharpener Unboxing R2

Hapstone Pro Knife Sharpener Unboxing R2 Clamps

 Hapstone Pro Knife Sharpener Unboxing R2 Clamp on module

Repeat the process and install the second clamp in the desired orientation depending on the blade of choice.

Hapstone Pro Knife Sharpener Unboxing R2

The Hapstone Pro Sharpening System is now ready to put impressively sharp edges on all of your blades.

Fitting a stone to the system is easy using the spring loaded holder, simply pull back the tab closest to the handle and insert the stone with the face of the stone outwards, you will see the dovetail grooves also hold the stone in securely so it doesn't fall out while sharpening.

Hapstone Pro Knife Sharpener Unboxing R2 Stone Holder Hapstone Pro Knife Sharpener Unboxing R2 Stone Holder

Hapstone Pro Knife Sharpener Unboxing R2 Stone Holder

On the top of the guide rod is a metal strip that is used to mount the Digital Angle cube which is used to accurately measure the sharpening angle.

The base of the Angle cube has magnets that allow the cube to remain in place while adjusting the angle.

Digital angle cube for hapstone

If you are trying to create more complex angle geometry when sharpening then adding a convex adaptor to the mix can greatly change a knifes dynamic, create bevels that are stronger and still maintain sharpness.

Hapstone convex attachment accessory

Hapstone Convex attachment accessory

If you are in the market for a sharpening system that ticks all the boxes then the Hapstone R2 system is one to consider, Hapstone delivers quality, performance and accuracy in an affordable platform.

Get yours today HERE
